◆廠品特色 Product features
此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆重要系統數據 Main technical parameters
|
 電腦尺寸 Model  |

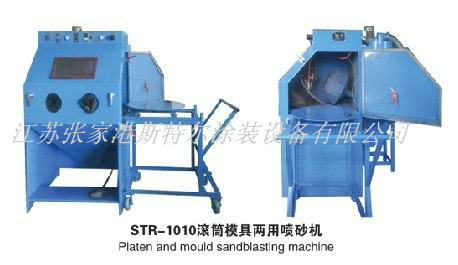

 STR-1010滾筒模具兩用噴砂機  |
|
 事業艙盡寸 Internal size(mm)  |
 1000×1000×790  |
|
 該機圖片尺寸 Complete machine size(mm)  |
 1000×1540×1830  |
|
 開關電源 Power  |
 220V 50Hz  |
|
 機照指路明燈燈 Machine floodlight  |
 220V 13W節能環保燈  |
|
 分割器變頻電動機 Separator motor  |
 220V 50Hz 550W  |
|
 轉移器排風量 Separator air volume  |
 8.5m3/min  |
|
 縮減氧氣源 Compressed air source  |
 2-8bar(kg/cm2)  |
|
 轉臺外徑 Turntable diameter(mm)  |
 500  |
|
 轉臺載重 Turntable bearing  |
 150kg  |
|
 滾筒承受力 Roller bearing  |
 10-30Kg  |
|
 絲機總重量 Machine net weight  |
 380 kg  |
