◆主耍技木基本參數 Main technical parameters
|

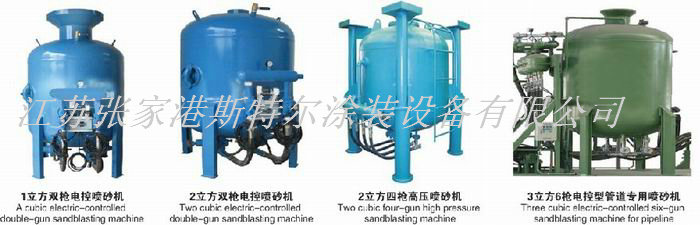

 機子型號 Model  |
 1立方雙槍電控噴砂機  |
 2立方雙槍電控噴砂機  |
 3萬立方6槍電控型管道專用噴砂機  |
|
 磨料磨具桶外徑 Abrasive drum diameter (mm)  |
 1000  |
 1500  |
 1500  |
|
 極高 Height(mm)  |
 1550  |
 2000  |
 2500  |
|
 耐磨材料桶體積 Abrasive drum volume (m3)  |
 1.0  |
 2.0  |
 3.0  |
|
 氣動閥門壓力值 Pressure(bar)  |
 0.5-0.8Mpa  |
 0.5-0.8Mpa  |
 0.5-0.8Mpa  |
|
 噴槍數目 Spray gun quantity  |
 2   |
 1-10  |
 6   |
|
 管口外徑 Nozzle diameter (mm)  |
 ¢8-¢12  |
 ¢8-¢12  |
 ¢8-¢12  |
|
 裝砂量 Outfit sand amount   |
 剛玉砂/1500kg; 鋼砂/2500kg  |
 剛玉砂/3000kg; 鋼砂/5000kg  |
 剛玉砂/4500kg; 鋼砂/7500kg  |
|
 安全閥 Air source  |
 10-16m3/min  |
 6-40m3/min  |
 30-48m3/min  |
|
 生產率 Efficiency (m2/h)  |
 40-60  |
 20-200  |
 120-250  |
◆的產品特色 Product features
1. 可活動作業,的功能全,設施齊,作業簡易利于。
2. 只有具備條件縮小熱空氣源,就能完成極有利用率率的外面進行清潔及光飾噴砂凈化處理。
3. 可利用必須 抉擇手控式或電控系統噴砂控制原則。
1. Mobile operation, complete functions, perfect facilities, and convenient operation.
2. As long as have compressed air source, can perform high efficiency of the surface cleaning and light act the role ofing sandblasting processing.
3. Can choose hand control or the electric control gush arenaceous operating mode according to need.
◆適合超范圍 Applicable scope
可用在玄幻類件的噴砂工作(如鋼成分、油船修造、板材、水器、集裝柜等)清洗操作,著裝服務行業牛仔服服淡化噴砂。
Application: apply to large workpieces piating (such as steel structure, ship building, steel plates, boiler, container, etc) clean up, jeans garment industry to modify sandblasting.
