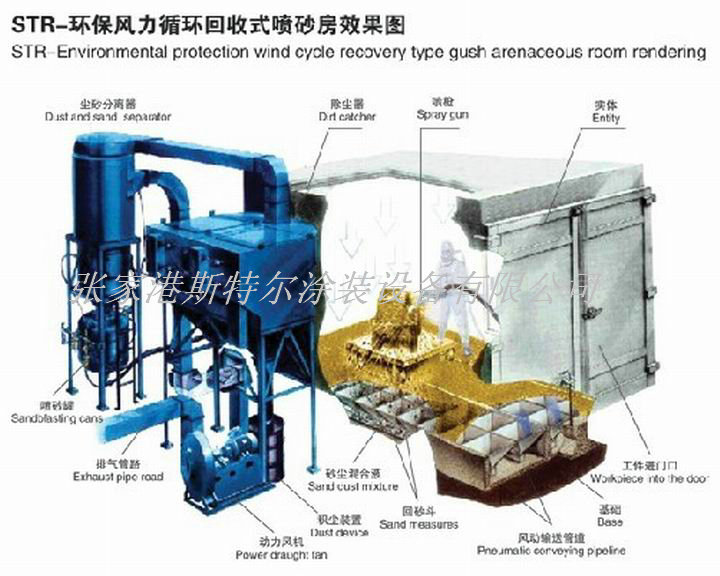

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的分為整體

Composition of the sandblasting (shot) room system

1、業務室  Studio

2、噴砂系統的  Sandblasting  system

3、研磨材料收購裝置  Abrasive recycle system

4、清灰系統的  Dust removal system

5、類件傳輸體統  Workpiece conveying system

6、有效控制體統  Control system

7、燈具控制系統  Lighting system

 ◆可用比率 Applicable scope

小型鑄件鍛件、對接焊鋼設備構造、干式變壓器副油箱、公程機械設備制造裝備、重型機車設備、生物質鍋爐生產加工、化工環保機械設備制造裝備、船舶制造修造等噴砂除銹方法。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆的產品顯著特點 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

享有下列優缺點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、耐磨材料的回收利用率高，盡可能使清換耐磨材料；

3、最主要的電氣開關pcb板均適用進口貨物料，包括功效相對穩定，穩定穩定可靠，選用平均時間長，運營簡略；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、機器用于單級抑塵設備，首位級用于風暴溶合器，二、級用空氣濾芯式抑塵設備系統，其總抑塵設備吸收率高達99.99%往上；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各操作機機系統電控機機系統選取互鎖操縱，當這其中一操作機機系統展現出現故障時，有關的操作機機系統均為止事情，噴槍為止噴射；

8、房體使用房子裝飾布設置，外光簡捷、精美、制約，降噪處理成果好，且裝置方便。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
