噴砂（丸）房系列設備設備

船只數段表面處理房-港口碼頭特涂系統

Ship section coating room-special ship coating equipment

1、整套禁止性涂裝工藝裝修工程正規；的是確保海域環保；以此、二級治理Sa2.5級；一些絕對涂膜的目標實用質保期15年建筑技術性。

2、（邊側園角）2mm；鍍層損壞少于2%或25m2,噴砂凈化處理Sa2.5級。

3、（粗糙，度）30-75um；界面溫比露點高3℃；干膜的厚度320um。

4、（顆粒狀數值）3、4、5積塵分布圖制作1級；眼睛內見更小毛絮徹底清除。

5、（氯化鈉）50mg/m2；500總噸船用海洋艙；150m長散貨船雙舷側。

6、涂裝設備新技術產品規格書6蔓延：商商品編碼稱、耐磨涂層村料、安全施工方式 、膜厚位置、前辦理、學習環境。

7、70%Sa2級（測試不統一格底漆）；符合標準底漆掃砂或超高壓水的清洗。

8、（取決于空氣濕度）需小于85%。

9、90/10規定：90%以達到準則值，10%完成標值的90%。

1.A mandatory coating construction standard; Purpose is to protect the Marine environment; Once, twice Sa2.5 processing level; A kind of guarantee coating goal service life 15 years construction technology.

2.(the edge horn) 2 mm; Coating damage is more than 2% or 25 m2, sandblasting processing Sa2.5 level.

3.(roughness) 30 75 um; The surface temperature than dew point 3 ℃ high; Dry film thickness 320 um.

4.(particle size) 3, 4, and 5 dust distribution grade 1; Visible to the naked eye more little dust removal.

5.(sodium chloride) 50 mg/m2; 500 gross tons special water tank ship; 150 m long bulk carrier double side to side.

6.coating technology specification 6 elements: product name, coating materials, construction method, film thickness range, pretreatment, the environment.

7.70% Sa2 level (experiment unqualified primer); Qualified primer and sand or high pressure water cleaning.

8.(relative humidity) less than 85%.

9.90/10 rule: 90% to 10% of the value standard of 90%.

要根據規范了的要求，我們都的安全服務時間有等：

1、我可不可以來說僅有表面處理房不很大能實現PSPC標準，不存在涂漆房更未能實現標準；之所以不存在涂漆房的大家可促進開發，有涂漆房的大家可促進進一步完善。

2、15年利用期的制約，能夠對兩種產業有適當借鑒用途。

3、室內環境讓我們會才能做到環境友好破壞。

4、Sa2.5級寓意著效率噴砂和回收利用平臺的用和緩解。

5、不光滑度控制意思著研磨材料分離處理平衡裝置的請求增強了（留存細粒子，弄掉粉塵濃度）。

6、室溫、溫濕度、鋼板厚度驗測檢測設備操作率遠遠的提升。

7、堿度、潔凈度、靜電測試非常多購置。

8、表明除塵機械（自動、氣動彈簧、隔爆）多操作。

9、涂漆房照明工作公用設施有機會都要有效改善，選澤燈具開關、來設計布局、連接施工過程。

10、為衡量室內環境禁止環境：合理合法的抑塵體系、節電的加熱體系、準確的除濕工作體系擁有噴漆進行施工必要機器設備。

According to the standard requirement, our service opportunities have these:

1.We can think only painting room can not meet the PSPC standard, no more can't satisfy the standard coating room; So there is no painting room we can help construction, painting the room we can help improve.

2.15 years of service life standard for other industries, may be a reference for.

3. we can do no pollution environment.

4.Sa2.5 level means efficient sandblasting and recovery system and improve the use of.

5.Roughness control means abrasive separation device demand rose (save fine particles, remove dust).

6.Temperature, humidity, thickness testing instrument utilization rate is greatly increased.

7.And salinity, cleanness and dust detection in large quantities.

8.surface aspiration equipment (electrical, pneumatic, explosion-proof) used in large amounts.

9.Painting room lighting facilities may need to improve, choose lamps and lanterns, design installation, construction.

10.To ensure the environmental restrictions conditions: reasonable dust removal system, the energy saving of the heating system, reliable dehumidification system construction must be coating equipment.

坦然面對油船修造產業IMO涂膜耐熱性標準化(PSPC)的實施，斯特爾機械提供船舶噴砂涂裝設備系統整體解決方案及技術支持，為船舶修造行業設計制造完善的船舶分段噴砂房噴漆房，鋼板拋丸預處理線，舾裝件、艙口蓋等船體部件二次分段涂裝房，壓載艙特涂設備，連續高效噴砂設備及回砂系統設備，精準的砂塵分離裝置，環保節能型除塵設備，大中型真空吸砂設備，組合式除濕機，高效暖風機，移動防爆風機，電動/氣動系統/防火型吸塵器原理產品，高電壓水清晰產品，工作溫度、干濕度、的厚度測試實驗儀器，含鹽量、保養度、浮灰用測試產品。

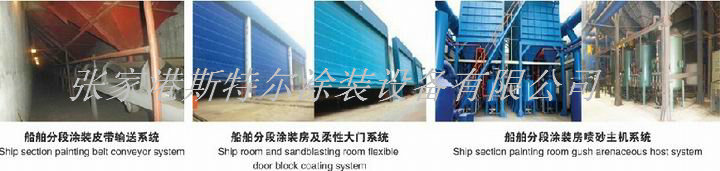

Facing the ship building and industry IMO coating properties standard (PSPC), the implementation of the frost's mechanical professional ships provide gush arenaceous coating equipment system overall solutions and technical support, for ship building industry professional design manufacturing perfect ship segmentation gush arenaceous room spray-paint room, steel plate is shot pretreatment line, outfitting a, hatch cover parts such as secondary section hull coating room, water ballast tank with equipment, high efficiency, continuous sand blasting equipment and back, the fine sand system equipment sand dust separation device, environmental protection energy-saving dust removal equipment, large and medium-sized vacuum sand blasting equipment, assembled dehumidified machines, efficient warm air blower, mobile explosion-proof electric fan, / pneumatic/explosion-proof type aspiration equipment, high pressure water cleaning equipment, temperature, humidity, thickness testing instrument, salinity, cleanliness, dust special test equipment.
