熱噴漆儀器（噴鋅機，噴鋁機，噴鋅鋁和金機）型號

Thermal spraying equipment (spraying zinc machine, spraying aluminum machine, spraying  injection machine spraying zinc alloy machine) series

·熱噴塑類別歷程：以這種電熱鍋爐將噴塑涂料（橡膠線或粉材）加水，熱膨脹的涂料組成熔融或半熔融程序的顆粒，這一些顆粒以壓縮成大氣為推力以一段的速度快沖擊力并沉積物在基表皮面上方，組成具一段優點的噴塑層。

·以給出供熱系統的各個，可劃分成焚燒法和電加熱法。兩者有焚燒火花噴砂工藝、著火噴砂工藝及極速火花噴砂工藝（HVOF）；后一個包含焊弧噴砂及等陰陽陽亞鐵離子噴砂（又分過熱蒸汽等陰陽陽亞鐵離子噴砂與水穩等陰陽陽亞鐵離子噴砂）。噴砂技術對納米涂層制造必要危害的是噴砂溫度（苛刻的說，是溶滴的影響基表淺面時的溫度）和溶滴的影響表面能的高速度。

·斯特爾熱噴塑工藝程序重要使用電力鐵塔、燈桿、鋼箱梁、水閘們、運輸船只等形式件大界面積長效機制防水及造紙廠烘缸、刷輥、曲軸等零件的界面破損的噴塑工藝修整，還適使用電感、電瓷領域的參比電極噴塑工藝等。

·Thermal spraying series process: Add some heat source and to heat up the spraying materials(Wire or powder materials), heated material form melting or half melt condition of particles, These particles are power by compressed, to certain speed for the impact and deposition in the matrix surface, form a spray coating with some characteristics.

·To the different provide between heat source it can be divided into burning method and heating method. The former includes combustion flame spraying, explosion spraying and the flame spraying (HVOF); The latter include arc spraying and plasma spraying (is divided into atmospheric plasma spraying and plasma spraying water stability). Spraying process have an important impact on the coating is that spraying temperature (Strict said, it is the temperature of dissolve drops the matrix surface of the impact) and dissolve the speed of the impact drops surface.

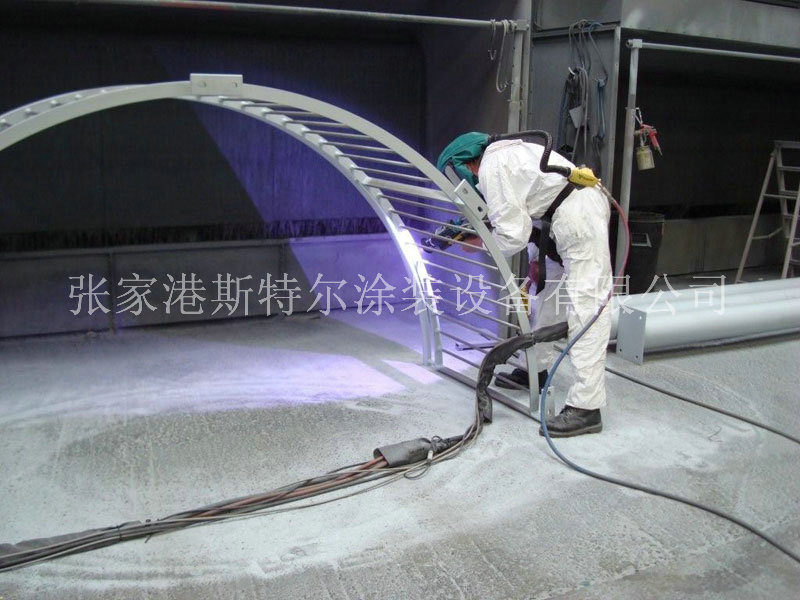

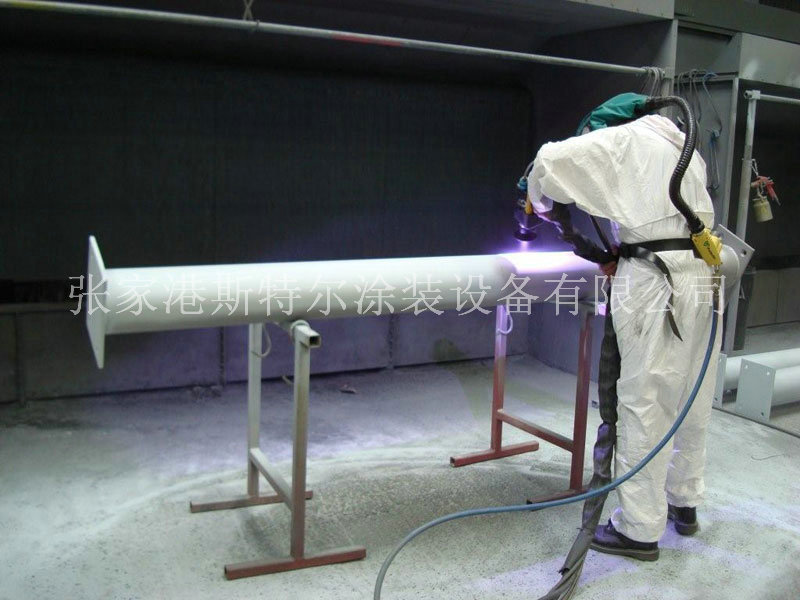

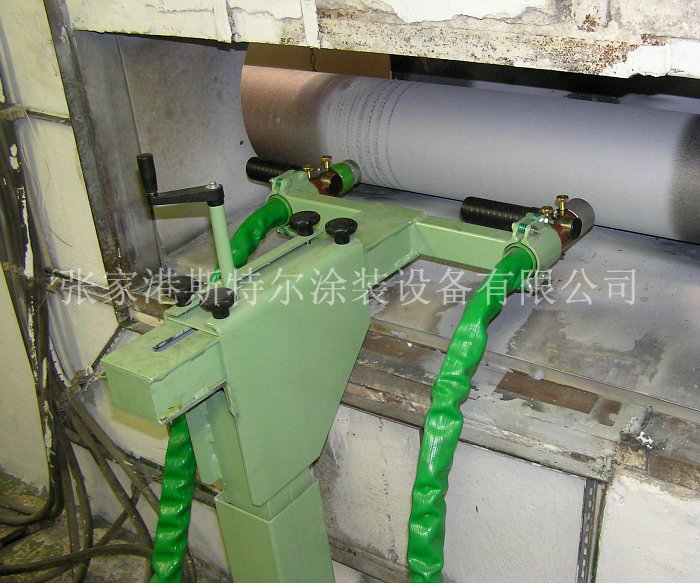

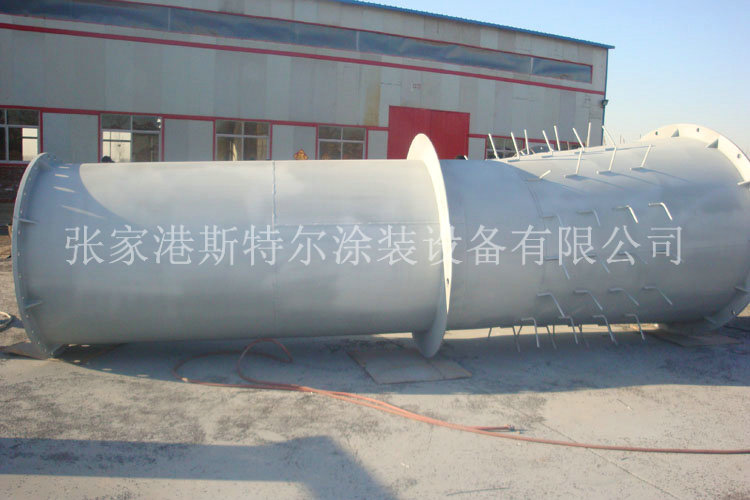

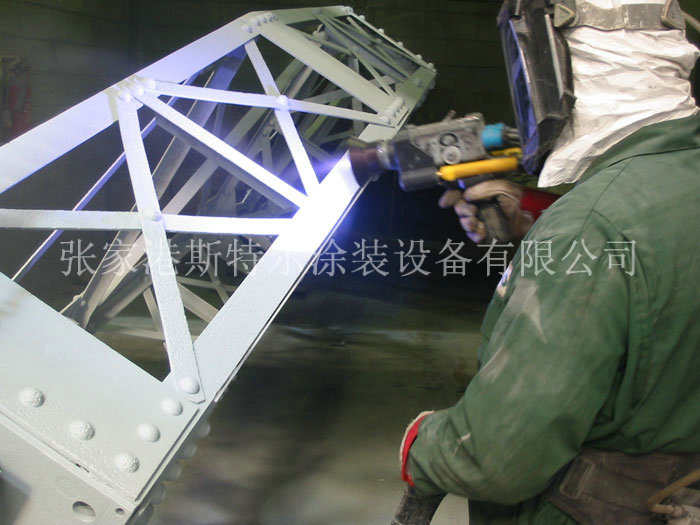

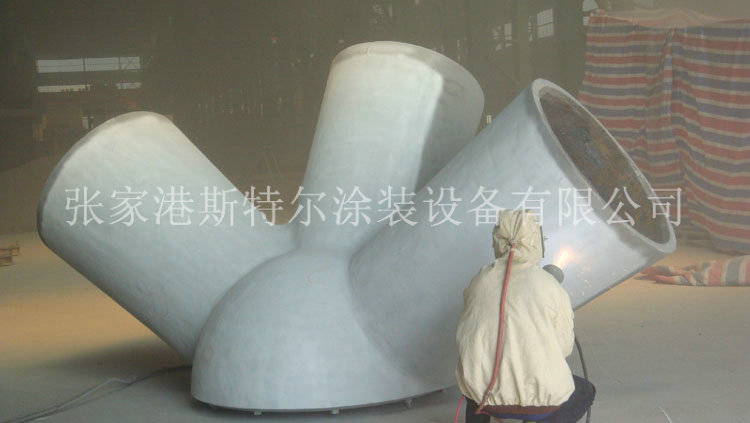

·Stel hot spraying System, which is used for light pole, Bridges, tower, the locks, shipbuilding and other structural long-term anti-corrosion and paper dryer, printing roll, crankshaft etc of workpiece surface wear spraying repair, also applies to capacitor, electroceramics electrode coating industry.

◆金屬涂層工作 Coating function

法律規定瑞典F.N.LONGO對熱噴砂鋁層的等級分類工藝，鋁層按功用可構成：

1、耐損傷損金屬鍍層。包涵抗黏著損傷、表面上勞累損傷金屬鍍層和耐沖濁金屬鍍層。這之中非常情形也有抗高濕（<538C）輪胎磨損和抗常溫（538～843C）損傷鍍層之分。

2、耐高溫環境抗硫化鋁層。這鋁層屬于高溫環境具體步驟（中間有硫化節日氣氛、蝕化性甲烷氣體、大于843℃的沖蝕及熱障）和熔融合金的時候（這里面有熔融鋅、熔融鋁、熔融鐵和鋼、熔融銅）所適用的表層。

3、抗大方得體磅礴和浸漬的的結垢涂覆。大方得體磅礴的的結垢屬于工業品熱場、鹽性熱場、田野熱場等產生的的的結垢；浸漬的的結垢屬于直飲惠陽、非直飲惠陽、熱惠陽、氯化鈉、普通機械和食品廠代加工等產生的的的結垢。

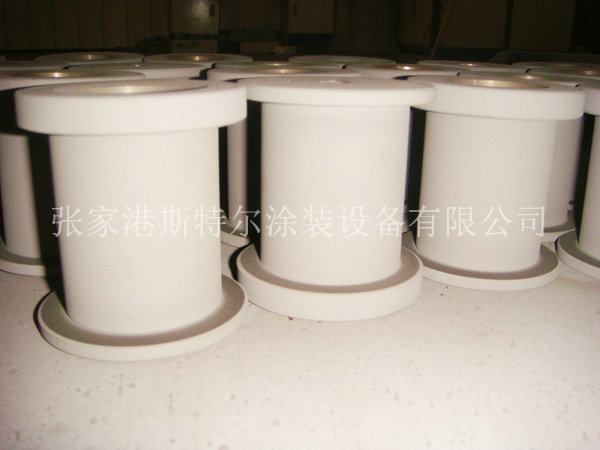

4、電導和電阻器功率金屬鋁層。宜種金屬鋁層采用電導、電阻器功率和禁掉。

5、還原長寬耐磨涂覆。這耐磨涂覆適用于鐵基（可切銷與可切削的碳鋼板和耐蝕鋼）和彩色廢金屬（鎳、鈷、銅、鋁、鈦及你們的各種合金）成品。

6、自動化設備零配件齒隙管控鋁層。此種鋁層可磨。

7、耐物理上浸蝕涂膜。物理上浸蝕有一些酸、堿、鹽，一些硅酸物和一些有機無機化學物理上物質的浸蝕。

Coating can be divided in function according to the US F.N.LONGO of method that the classified method of thermal spraying coating.

1. Wear resistance coating. Including resistance to stick with wear, wear coating surface fatigue and resistance to blunt turbidity coating. Some of them have difference such as fight microtherm wear(<538C) and high temperature resisting wear coating(538~843C).

2. Heat resistant antioxidant coating. This coating process application of coatings including high temperature( There are oxidation atmosphere, corrosive gas, higher than 843℃ of erosion and thermal barrier) and molten metal process(There are melting molten aluminum, zinc, iron and steel, melting molten copper).

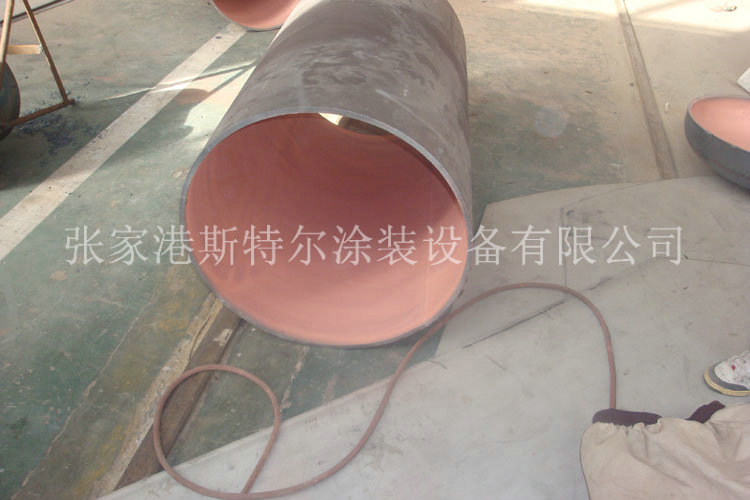

3. Atmospheric corrosion resistance and dipping coating. Atmospheric corrosion caused by corrosion including industrial atmosphere, atmosphere, atmosphere of salt field, etc; Dipping corrosion caused by corrosion including drinking water, the drinking water, hot water, salt water, chemical and food processing, etc.

4. Conductivity and resistance coating.The coating used for electrical conduction, resistance and shielding.

5. Restore size coating. The coating used for some products made by iron (Carbon steel and corrosion resistant steel that can but cutting and grinding) and non-ferrous metal (Nickel, cobalt, copper, aluminum, titanium and other alloy).

6. Mechanical components clearance control coating.The coating can be ground.
