◆新產品特性 Product features
1. 的設計貼近生活,外型美觀度,生態環保效用好;
2. 可手動調節式風暴離心離心過濾器,能將適用耐磨材料與很小粉塵濃度離心離心分離,好的耐磨材料再次選擇;
3. 其主要零控制部件應用特色進口器件,使用的生命長;
4. 手工加工鑄件表面能均勻的;
5. 多工位器具的設計;操控員可一同操控噴砂。通過企業消費需求,可選裝擇速騰智能檔或智能 ;可按企業追求定制!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆使用範圍 Applicable scope
石材,筆記本電腦金屬外殼,音樂板材,三文治烤盤等品面及方體類件的噴砂生產加工。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆核心技藝基本參數 Main technical parameters
|
系統材質 Model |

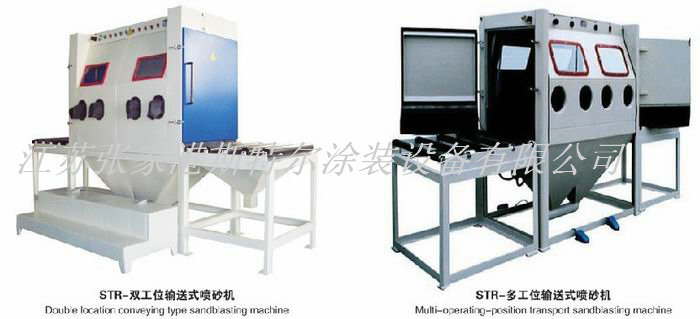

STR-多工位輸送式噴砂機 |
|
組裝機尺碼 Complete machine size(mm) |
3000×1000×1700 |
|
工作上區域 Work space(mm) |
2000×1000×800 |
|
外推送的尺寸 Conveying the size(mm) |
500×1000×1000(2件) |
|
吸塵箱的尺寸 Dedust box sizes(mm) |
600×600×1800 |
|
分割器伺服電機 Separator motor |
220V 50HZ 550W |
|
脫離器功率 Separator air volume |
8.5m3/min |
|
壓解冷空氣源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防暴燈 |
|
機氣權重 Machine weight |
550kg |
