液體噴砂機系列
◆新產品優點 Product features
1.極大值的有效改善了粉塵爆炸對自然環境的有害和對員工正常的有害;
2.的工作方案輕松,技術技術指標可變性,能應用有差異 的材質和有差異 精密生產加工機件的光飾生產加工規范;
3.在業務具體步驟中研磨材料反復的實用,耗損量小;
4.包括零主件采用年限長;
5.PVC鋼整殼生產制作,后蓋放水防電壽命長。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆使用范圍圖 Applicable scope
電商五金配件類,ABS塑膠片,亞克力板,硅橡膠等產品或新工藝禮品的噴砂預解決、啞光解決、光飾生產制作、出掉污跡等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆重要水平技術指標 Main technical parameters
|

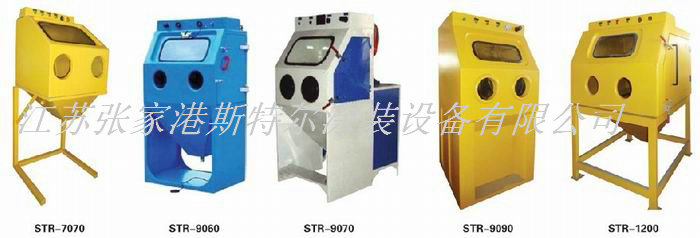

 POS機機型 Model  |
 STR-7070  |
 STR-9060  |
 STR-9070  |
 STR-9090  |
 STR-1200  |
|
 組裝機長寬 Complete machine size(mm)  |
 700×700×1750  |
 900×650×1680  |
 900×700×1850  |
 900×900×1780  |
 1230×1200×1850  |
|
 崗位區域 Work space(mm)  |
 690×680×670  |
 900×630×810  |
 900×700×650  |
 870×880×800  |
 1220×1200×850  |
|
 正門大小Main gate size(mm)   |
 530×330  |
 550×650  |
 600×670  |
 630×700  |
 975×660  |
|
 噴 槍 Spray gun  |
 一塊  |
 一顆心  |
 一件  |
 一件  |
 一個  |
|
 照 明 Floodlight  |
 一盞燈60W防暴燈  |
 一盞盞60W隔爆燈  |
 一盞盞60W隔爆燈  |
 一壺60W防火燈  |
 一盞盞60W防爆型燈  |
|
 砂 泵 Sand pump  |
 這臺,電功率1.5KW  |
 兩臺,最大功率1.5KW  |
 幾臺,工率1.5KW   |
 臺,效率1.5KW  |
 整臺,馬力1.5KW   |
|
 電 源 Power  |
 二相220V溝通交流電  |
 三相變頻器220V座談會電  |
 三相變頻器220V聊天電  |
 兩相電220V交流會電  |
 三相變頻器220V討論會電  |
|
 進行壓縮大氣源 Compressed air source  |
 2-8bar(kg/m2)  |
 2-8bar(kg/m2)  |
 2-8bar(kg/m2)  |
 2-8bar(kg/m2)  |
 2-8bar(kg/m2)  |
