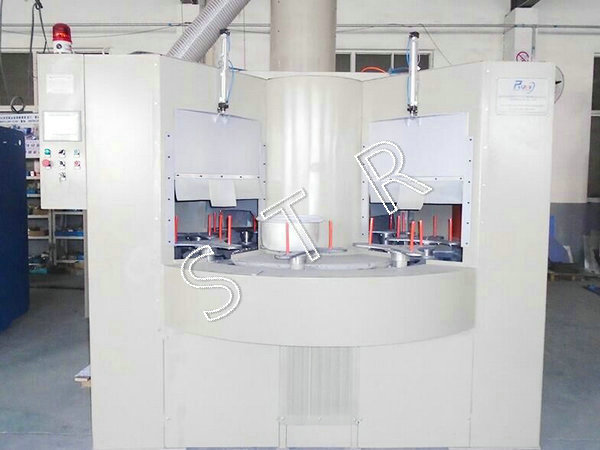

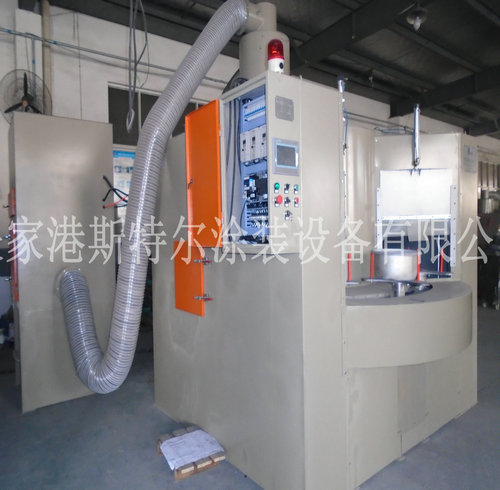

本噴砂機適用于10-490mm直徑怎么算的幾大類鋁件的內在因素、外在環境外觀創意手工進行噴砂施工,清空外外觀的灰塵、外觀除銹設備、外觀武器鍛造、提生凹凸不平度、洗去外觀能力等。(隨后:電飯煲、杯具、不粘鍋、手機號設備殼、網上設備殼、水輪、圓鋸片等一等)可按顧客的要求訂制單工序或雙工序。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆主要的新技術性能指標 Main technical parameters
|
 機械技術參數 Model  |
 STR-A1500型第十二槍園盤退回式  |
 STR-A1600型八槍園盤傾動式  |
 STR-A1600型十四槍圓輪換向式  |
|
 整體長寬高 Complete machine size(mm)  |
 1500×2160×3000  |
 1600×1800×2500  |
 2200×2400×3000  |
|
 崗位艙長度 Working class size(mm)  |
 Φ1400  |
 Φ1500  |
 Φ2000  |
|
 排塵箱盡寸 Dedust box sizes(mm)  |
 1000×1200×2500  |
 1000×1200×2500  |
 1400×1400×2500  |
|

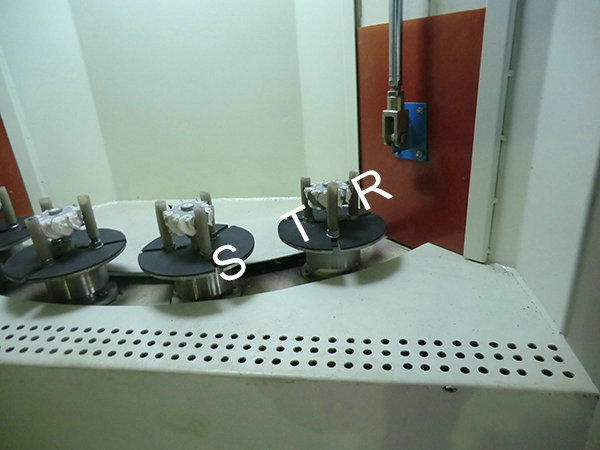

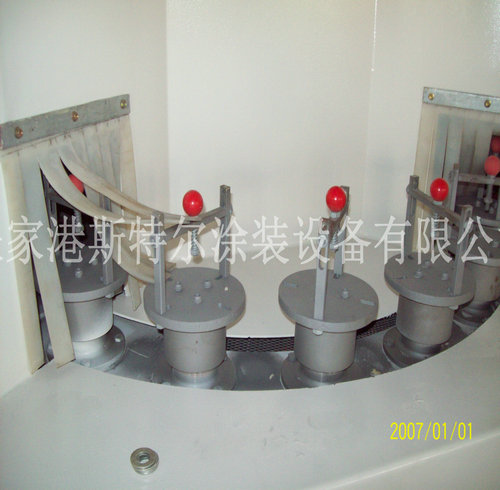

 小轉盤數 The small turntable for  |
 16個  |
 8個  |
 8個  |
|

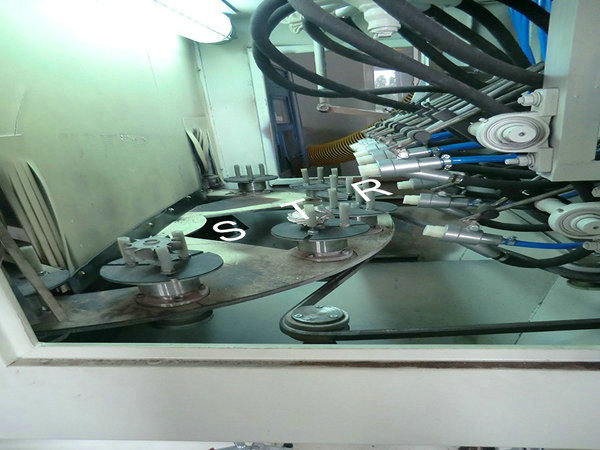

 噴槍數 Gun number  |
 12把  |
 8把  |
 14把  |
|
 供電 Power  |
 380V三相四線電  |
 380V三相電電  |
 380V單相電  |
|
 照明 Floodlight  |
 2盞防暴燈  |
 2盞隔爆燈  |
 2盞防燃燈  |
|
 機設備重量體積 Machine weight  |
 800kg  |
 750kg  |
 800kg  |
